HXE-450/13DL Copper rod breakdown machine with annealer
I. Quick details
HXE-450/13DL Copper rod breakdown machine is used to draw and anneal single bare copper wire from 8mm to 1.2mm-4.5mm.The drawing capstans are arranged in a line that are able to work continuously with drawing speed and electrical control can be matched with each other.
II. Compositions of equipment
| Name | Quantity |
| 1. Cantilever Pay-off shelf | 1 |
| 2. HXE-450/13DL Main drawing machine | 1 |
| 3. HXE-TH450 Annealing machine | 1 |
| 4. HXE-180 Tension controller | 1 |

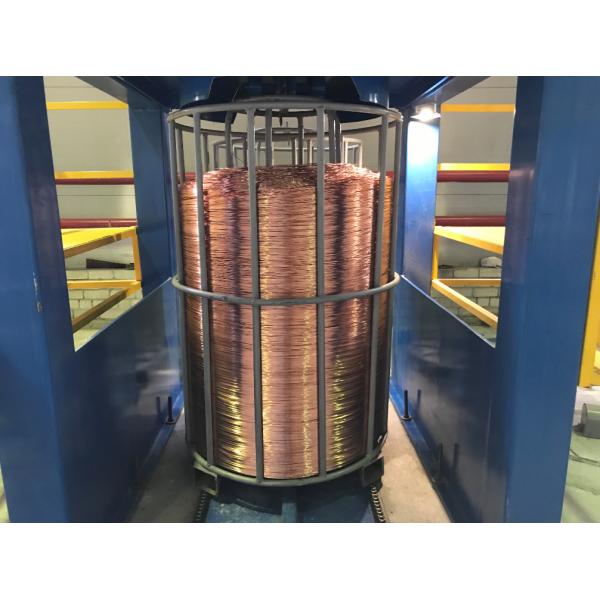

| 5. HXE-WF800 Coiler & Basket changer system | 1 |
| 6. HXE-SX630 Double spoolers | 1 |
| 7. Electrical cabinet | 2 |
| 8. Operation panel / With PLC&Touching screen | 1 |
| 9. Steam generator 24KW | 1 |
| 10. Wire Pointing & Threading machine | 1 |
| 11. Copper power filter | 1 |
| 12. Gear oil station | 1 |
| 13. Air compressor & Air tank | 1 |
| 14. Butt welding machine (For 8mm copper rod) | 1 |
| 15. Spare parts | |
III. Main technical parameters
| 1. Inlet | 8mm (Inlet wire straightening function is provided) |
| 2. Outlet | 1.2mm-4.5mm (Final die rotation function is provided) |
| 3. Diameter of capstans | 450mm |
| 4. Speed | 1500m/min, Capacity say 1.2mm, 780kg per hour |
| 5. Slip ratio | 1.4-1.2 decrease |
| 6. Quantity of capstan | 13 |
| 7. Capstan | Tungsten carbide (With wire threading function) |
| 8. Quick dies change | Available / Require less dies |
| 9. Main motor | DC280KW, with DC Controller |
| 10. Fix speed motor | DC75KW, with DC Controller |
| 11. Gear | Changeable |
| 12. Noises of machine | ≤85 db |
| 13. Protection cover | Motor transmission cover installed |
| 14. Others | Heat exchanger for Gear oil is provided |
| 15. Others | All main pipes are provided |
| 16. Others Gear oil station system is provided, including: Pump, Gear oil tank, Pipes, Oil Pressure Gauge, Signal wire. |
| 17. Others Heat exchanger for Lubrication oil and Heat exchanger for cooling water, no need. You need prepare one Underground Tank for Lubrication Oil recycle, one Water Tower for Cooling Water recycle. |
IV. Lifting the machine, installation, adjustment
4-1. Lifting, there are four lifting rings to lift.
4-2. Installation, please check the external drawing and foundation drawing of the machine, dig the ground, put the machine in position, check the horizontal level, adjust the ground screws, put concrete slurry, after dry and fix, check the horizontal level again, then fix the machine by the ground screws.
4-3. Adjustment, clean all parts, check all the part no loose.
V. Preparation before working
5-1. Check all parts lubrication conditions.
5-2. Check drawing lubrication oil, cooling water, steam, air pressure.
5-3. After checking, connect to power, according to the Electrical drawing, use foot switch, to make the machine operating in low speed (under 4m/s), if no Abnormal, then can begin to work.
