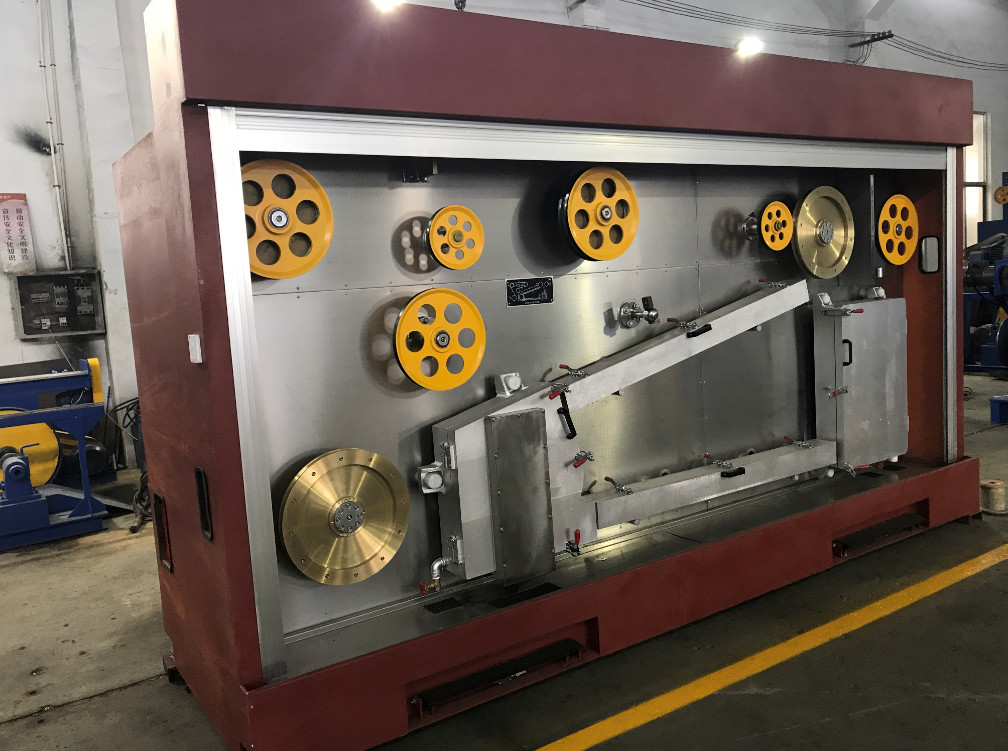

HXE-450/13DL Big aluminium rod breakdown machine
I. Application
HXE-450/13DL Big Aluminium rod breakdown machine is used to draw single bare aluminium wire from 9.5mm to 1.7mm-4.2mm.The drawing capstans are arranged in a line that are able to work continuously with drawing speed and electrical control can be matched with each other.
II. Compositions of equipment
| Name | Quantity |
| 1. Cantilever Pay-off shelf | 1 set |
| 2. HXE-450/13DL Main drawing machine | 1 set |
| 3. HXE-180 Tension controller | 1 set |
| 4. HXE-SX630 Double spoolers | 1 set |
| 5. Electrical cabinet | 1 set |
| 6. Operation panel | 1 set |
| 7. Gear Oil system (Pump+Cooler) | 1 set |
| 8. Spare parts | 1 set |
III. Main technical parameters
| 1. Inlet | 9.5mm (Inlet wire straightening function is provided) |
| 2. Outlet | 1.7mm-4.2mm (Final wire cleaning function is provided) |
| 3. Diameter of capstans | 450mm |
| 4. Speed | 1500m/min, capacity say 1.7mm, 540kg per hour |
| 5. Slip ratio | 1.4-1.2 decrease |
| 6. Quantity of capstan | 13 |
| 7. Capstan | Tungsten carbide (With wire threading function) |
| 8. Quick dies change | Available / Require less dies |
| 9. Main motor | DC250KW, with DC Controller |
| 10. Fix speed motor | DC75KW, with DC Controller |
| 11. Gear | Changeable |
| 12. Noises of machine | ≤85 db |
| 13. Protection cover | Motor transmission cover installed |
| 14. Others | Cooler for Gear oil is provided |
| 15. Others | All main pipes are provided |
| 16. Others Gear oil recycling complete system is provided, including: Pump, Gear oil tank, Pipes, Oil Pressure Gauge, Signal wire. When lack of oil, machine will auto stop. |
| 17. Others Cooler for Lubrication oil , no need. You need prepare one Underground Tank for Lubrication Oil recycle. |
IV. Through the dies
4-1. Use pliers to break the wire to get a smaller section.
4-2. Use pliers to make the wire through the dies, then pull the wire out. Pay attention to the dies` front and back.
4-3. If wire breaks can use Cold welding machine to fix.
V. Operation and precautions
1. Make sure the machine is clean.
2. Power source.
3. Ground wire grounded.
4. Lubrication oil should be clean.
5. The spool is well fixed to the machine.
6. The pay-off shelf is ok..
7. No leak from the machine.
8. Make sure the dies are in the right positions.
9. Adjust the traverse width to fit the spool.
10. The cooling fan.
11. Machine foundation is fixed securely.
12. Lubrication pipes are ok, no block.
